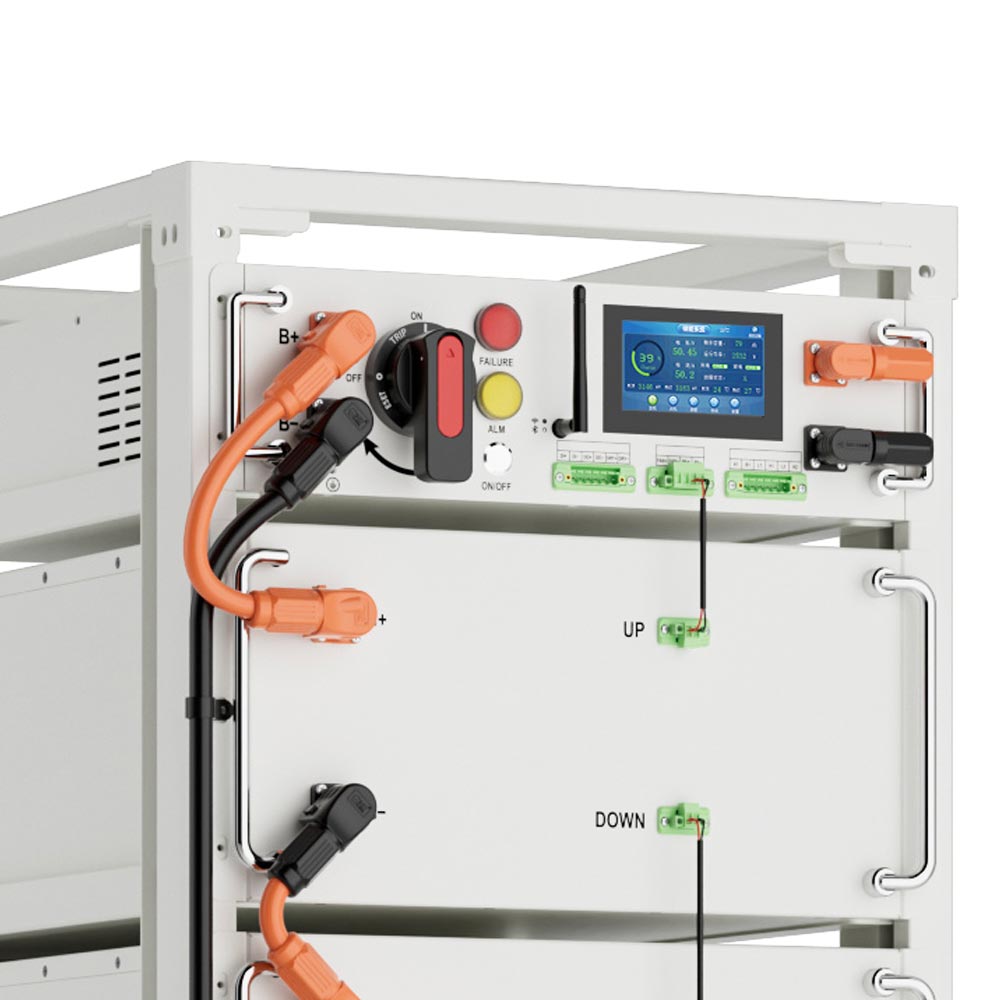

GY512100 – 51.2kWh High Voltage Energy Storage System

Reliable High-Capacity Energy Storage for Residential and Commercial Applications

The GY512100 uses automotive grade lithium iron phosphate square cells as the main energy storage component, with excellent cell performance and consistency, as well as long cycle life, which can better meet user needs.

  • Rated Voltage: 307V
  • Rated Capacity: 314Ah
  • Rated Energy: 96,460Wh
  • Battery Type: LFP
  • Weight: Approx. 730kg
  • Dimensions (W × D × H): 520 × 715 × 1770 mm

The GY512100 is ideal for:

  • Residential energy storage systems
  • Small commercial and industrial applications
  • Solar energy storage integration
  • Backup power systems
  • Energy optimization and load balancing
  • High capacity 51.2kWh system for demanding applications
  • Safe and stable LFP battery technology
  • High-voltage architecture for improved efficiency
  • Long lifecycle and reliable performance
  • Scalable system design with parallel capability
  • Intelligent monitoring and control
  • Charging Temperature: 0°C to 55°C
  • Discharging Temperature: -20°C to 55°C
  • Cooling Method: Natural Convection
  • Certifications: UN38.3, MSDS, DGM, CE
  • IP Rating: IP30
  • Max Parallel Clusters: 4
  • Display: 4.3-inch Touch Screen
  • Communication: CAN / RS485 / WiFi / Bluetooth (Optional)
