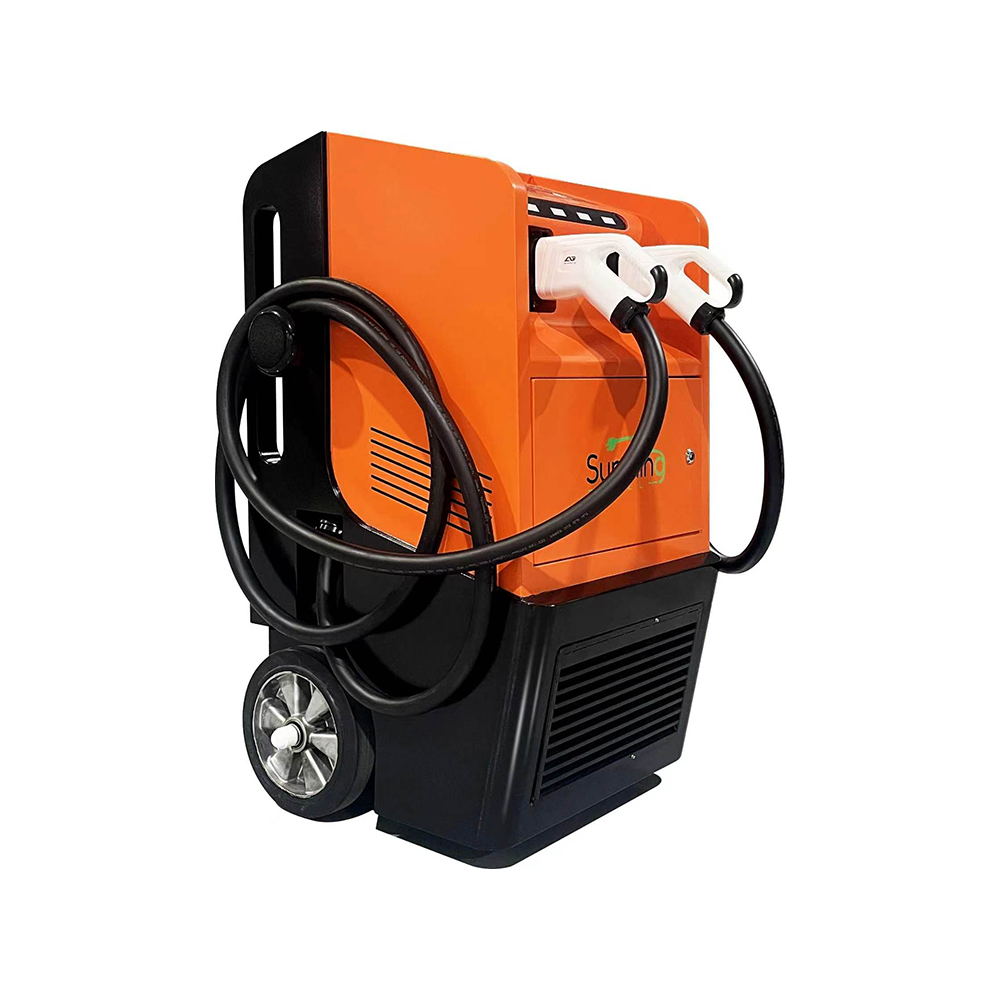

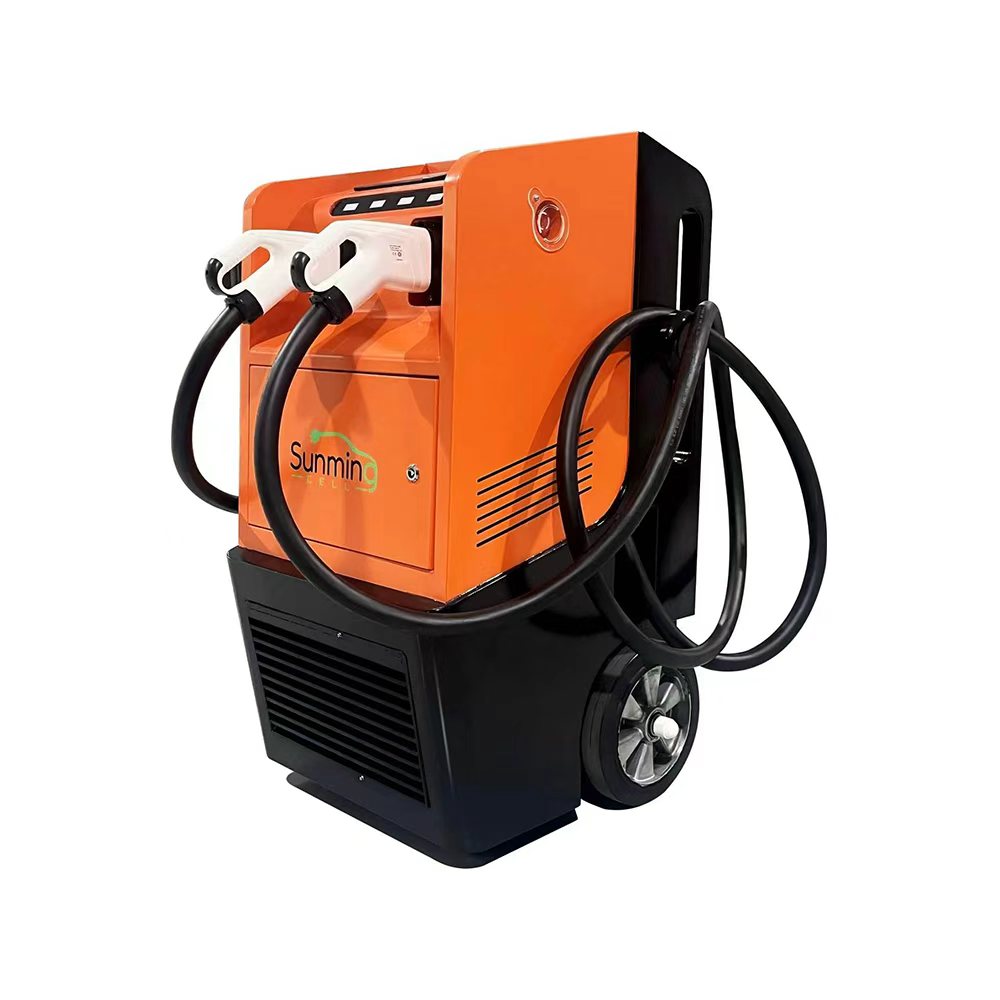

Mobile EV DC Fast Charger 80kW | Power Wherever You Need It

High-power 80kW output. The ultimate heavy-duty mobile charging solution for fleet operations and commercial charging services. No site preparation, no grid permits. Just plug into your existing industrial power source and start charging.

Display: 7-inch color LCD screen
Card reader: ISO/IEC 14443A, Mifare
Cable length: 5m stand
Connectivity: 4G, Wi-Fi, Ethernet
Communication protocols: OCPP 1.6J
User authentication: APP, RFID card
Environment: Indoor / Outdoor
Operating temperature: -35°C ~ 55°C
Storage temperature: -40°C ~ +80°C
Operating relative humidity: ≤95%, no condensation
Atmospheric pressure: 79 kPa ~ 106 kPa
Altitude: <2000 m
Ingress protection: IP54
Dimensions (H × W × D): 1200 × 760 × 678 mm
Noise: <65 dB

Power supply system:TN-S or TN-C-S
Power supply form:3P+N+PE
Supply voltage:260Vac-485Vac
Input current :0A~91A
Full load power:60/80 KW
Power factor:≥0.99
Efficiency:≥95% (Full load efficiency)
Frequency:55±10 Hz
Harmonic distortion (TH Di) :≤5%

Charging mode: CCS2
Output power: 60/80 kW
Output voltage range: 150 VDC–1000 VDC
1 channel maximum output current: 200 A / 250 A
2 channels maximum output current: 100 A

Number of outputs:
2 × CCS2, or
2 × CCS1,
2 × GB/T,
1 × CCS1 + 1 × CCS2, or
1 × CCS2 + 1 × GB/T

Current stabilizing precision: ≤ ±1%
Voltage stabilizing precision: ≤ ±0.5%

Input over-voltage and Under Voltage protection,

Short circuit protection,

Over -Current Protection,

Over Temperature Protection,

Leakage protection,

Lack of phase protection.

Safety and compliance: CE

Testing according to:
EN IEC 61851-21-2:2021
EN IEC 61851-1:2019
EN IEC 61851-23:2014
EN IEC 61851-24:2014

Warranty: 24 months, warranty extension possible

OTA updates via web portal
